SL20A TILT BLIND
Internal Glass Blind System

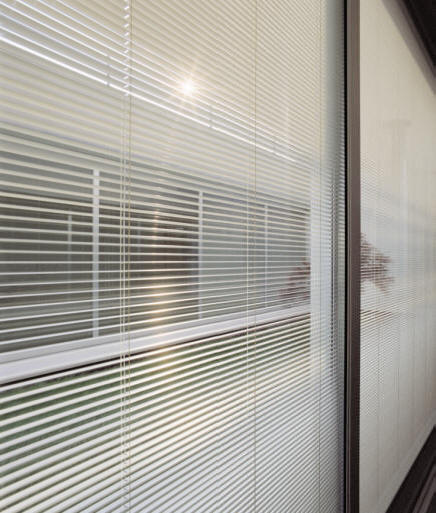

  The SL20A's unique magnetically coupled gear driven tilt mini-blind for installation in sealed insulated glass or replaceable glass packages. An externally mounted magnet controls the blind with a knob or a wand.

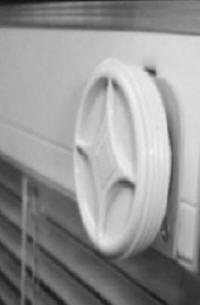

SL20A Knob

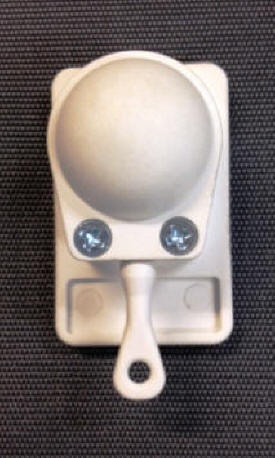

SL20A Wand Operator


The unique design of the blinds decreases internal heating by limiting amounts of infrared and UV radiation. This aids in controlling expensive air conditioning costs.




External Magnetic Control

  SL20A Specifications
The SL20A model requires a .750 internal glass airspace. Slats are made of aluminum alloy 6060-T8, 12.5mm (.500") x .008", and are painted with a low emissivity paint with a polyester ultraviolet high resistant finish. A 3/4" air gap is needed for the blind to operate.


Spacer System Box
Max Glass Thickness 1/4 Inch
Min/Max Width 12/80 Inches
Min/Max Length 10/106 Inches
Operator Types Wand, Knob or Cord-Loop.


Available Colors(12.5mm slats):

Colors:
0102 White
0125 Off White
0149 Almond
0069 Tan
0157 Silver
3000 Gold

(Click for larger image of color slats)




Additional Information:
SL20A Specifications Document

SL20A Production Size Charts

Order Form


(Use Acrobat Reader to view/print)

Pricing and Delivery:

Contact OEM Blinds LLC. for pricing.

Delivery is 3 weeks from receipt of order for all sizes except specials. Contact OEM for delivery information.



Warranty:

Blind repair or replacement only:

* 10 years when not exposed to greater than 220 F.

  * Outer cord loop - 1 year.

  * Failure to install cord tensioner voids all warranties (a tensioner will be supplied with each blind).
