SL20C LIFT AND TILT BLIND

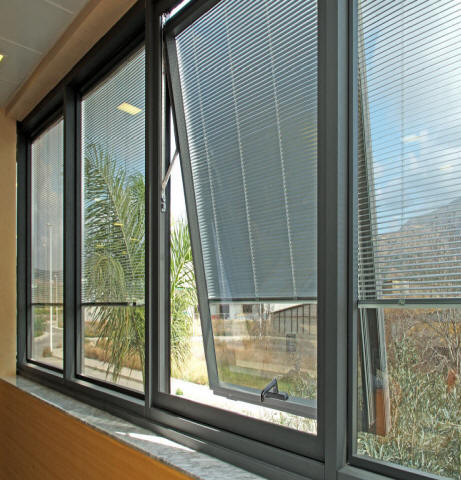

Internal Glass Blind System




The SL20C's unique magnetically coupled gear driven lift and tilt mini-blind for installation in sealed insulated glass or replaceable glass packages. An externally mounted magnet controls the blind with integral cord held in place by a loop tensioner. The cord loop rotates the external magnet, which drives the internal magnet with which it is coupled. Moving the cord loop down on the right or left of the out magnet assembly will respectively lower or raise the blind.

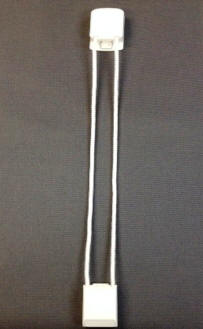

Cord Loop External Operator


The unique design of the blinds decreases internal heating by limiting amounts of infrared and UV radiation. This aids in controlling expensive air conditioning costs. The ease of pulling the cord loop causes the blind to tilt, providing an optimum level of light.

External Magnetic Control

  SL20C Specifications
The SL20C model uses an integral cord loop to raise and lower the blind slats. Easy accessibility to the cord loop ensures adjustment of the blinds. Optimum slat positioning can be achieved by making small adjustments when pulling to the right or left on the cord. The force to lift the blind is 36 Newtons maximum. To tilt it is less than 10 Newtons.

Spacer System Box
Max Glass Thickness 1/4 Inch
Min/Max Width 12/80 Inches
Min/Max Length 10/106 Inches
Operator Types Cord Loop


Available Colors(12.5mm slats):

Colors:
0102 White
0125 Off White
0149 Almond
0069 Tan
0157 Silver
3000 Gold

(Click for larger image of color slats)



Additional Information:
SL20C Specifications Document

Lift/Tilt Production Size Charts

Order Form


(Use Acrobat Reader to view/print)

Pricing and Delivery:

Contact OEM Blinds LLC. for pricing.

Delivery is 3 weeks from receipt of order for all sizes except specials. Contact OEM for delivery information.



Warranty:

Blind repair or replacement only:

* 10 years when not exposed to greater than 220 F.

  * Outer cord loop - 1 year.

  * Failure to install cord tensioner voids all warranties (a tensioner will be supplied with each blind).
