Topslide

Internal Glass Blind System


  The Topslide Internal Glass Blind System is operated by a top mounted external magnet, which controls the blind by a moveable finger slide device. When the slide device moves to the left or right, it causes the blind slats to tilt. The innovative and unique design of the finger slide device provides both privacy and light control.

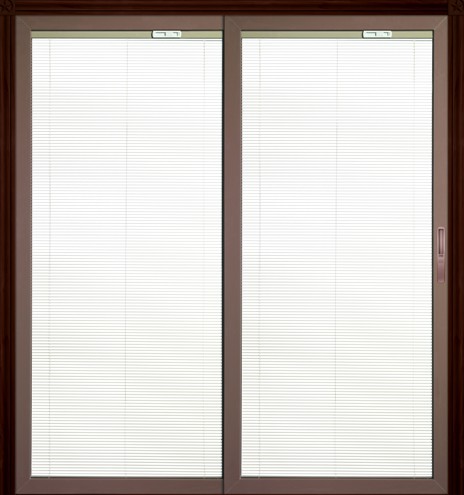

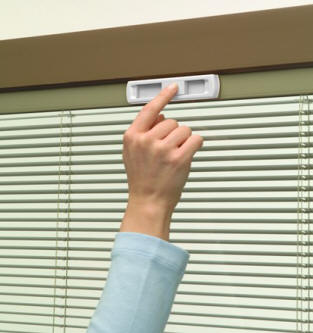

Topslide Blind with External Slide Operator




The moveable finger slide device makes adjusting the slats convenient and simple. Due to the blinds unique control of infrared energy and UV radiation, sun damage to fabrics, furniture and flooring ceases to exist.


Topslide Models and Specifications:

The 5/8" Topslide Blind requires a .625" internal glass airspace. The slat is aluminum alloy 6010-T8 and 12.5mm(.500") x .008". It is painted with a polyester ultraviolet high resistant finish. A .5/8" air gap is required for blind operation.

The 3/4" Topslide Blind requires a .750" internal glass airspace. The slat is aluminum alloy 6010-T8 and 15mm(.600") x .006". It is painted with a low emissive paint with a polyester ultraviolet high resistant finish. A 3/4" air gap is required for blind operation.


Spacer System Box or Intercept
Max Glass Thickness 1/8 Inch
Min/Max Width 3/4" Topslide  7/49 Inches
5/8" Topslide 13/49 Inches
Min/Max Length 10/80 Inches
Operator Types Slide (white only)

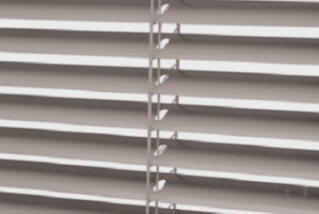

Available Colors(12.5mm slats):

Colors 12.5mm:

0102 White
0149 Almond
0069 Tan
3000 Gold

Colors 15mm:

2000 White
0112 Alabaster
0069 Tan
3000 Gold


(Click for larger image of color slats)




Additional Information:

3/4" Topslide Data Sheet

5/8" Topslide Data Sheet

Slide Operator Types

3/4" Topslide Size Chart

5/8" Topslide Size Chart

Order Form


(Use Acrobat Reader to view/print)

Pricing and Delivery:

Contact OEM Blinds LLC. for pricing.

Delivery is 3 weeks from receipt of order for all sizes except specials. Contact OEM for delivery information.



Warranty:

Blind repair or replacement only:

* 10 years when not exposed to greater than 220 F.

  * Outer magnetic operators - 1 year.
